T-TP-GL02

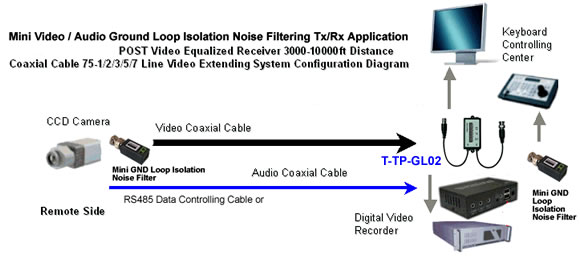

Coaxial Video Ground Loop Isolator
Prevents video-signal distortion caused by video ground loops. Eliminates picture tearing, cross talk and rolling.

  (Gold Price?)
Enter Qty
Features
  • Prevents video-signal distortion caused by video ground loops.
  • Eliminates picture tearing, cross talk and rolling.
  • Prevents power cables laid by others interfering with the CCTV system. Passive, no power required
  • Built in TVS (Transient Voltage Suppressors) for surge protection
Specification
Insertion Loss less 0.5dB
Frequency Response 0-3dB range in 20Hz to 12MHz
CMRR 58dB @ 1MHz
Differential phase less than 2 degrees
Differential gain less than 2%
S/N ratio >60dB
Ground loop circuit isolation >90dB and >50Hz
DC loop resistance 18 ohms/100m
Isolation Voltage 600VDC (Min)
Input Resistance 75 ohm
Output Resistance 75 ohm
Insulation Resistance 100M ohm
Dimension 63mmx36mmx21mm with two 165mm mini cable -BNC male and female connectors
